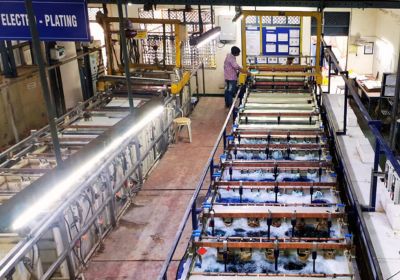

High-Quality electroplating line for PCB manufacturing, selectively depositing metal onto substrates to craft intricate circuit patterns, ensuring peak conductivity and electronic performance.

At Perfect Point, we're proud to offer Pattern Plating Lines that set the industry standard for precision and reliability in PCB manufacturing. Our advanced electroplating technology ensures superior conductivity, enhancing PCB performance and durability. Rely on us for excellence in fulfilling all your PCB manufacturing needs.

Technical Specifications (Customizable To Suit Your Needs)

In our Electroplating line, we place meticulous focus on every technical aspect. The specified details underscore our unwavering commitment to delivering excellence, guaranteeing precise and top-tier plating solutions tailored to meet your specific needs.

S.No.	Specifications	Description
1.	Structural Material	SS-304, 316
2.	Tanks	Polypropylene/Stainless Steel
3.	Control Panel	L&T, Schnider, OMRON or Compatible
4.	Wires & Cables	PolyCab, Havells, lapp or Compatible
5.	Automation Grade	Manual/Semi-Auto/Auto
6.	Inlet-Outlet Pipelines	Polypropylene/PVC/PPR
7.	Heaters	Titanium/Stainless Steel/Gloss
8.	Cooling Coil	Titanium/Stainless Steel/ Teflon
9.	Rinsing System	Cascade/Counter Flow 2x & 3x
10.	Mechanical Agitation	45°
11.	Transporter	Optional
12.	Sequencer	For Manual Line
13.	Fume Scrubber	Optional(Recommended)
14.	Chemistry Support	All major
15.	Pre-installation Consultation	Available(Paid)
16.	AMC	Available(Paid)
